VICTAULIC TOOLS FOR REVIT®
Bringing Generic Revit Models To Life
VICTAULIC – THE FABRICATION SOLUTION
Faster From the Start TM

Now Available: Victaulic Tools For Revit 2019

IT’S ALL IN A DAY’S WORKAROUND

Victaulic Tools for Revit®  finally allows you to fabricate and procure within Revit. Compatible with all supported versions of Revit and Fabrication Parts, it is specifically designed to meet the needs of engineers, contractors and fabricators – giving you smarter tools to fabricate faster and route more efficiently. Fabrication within Revit is now possible – with Victaulic.

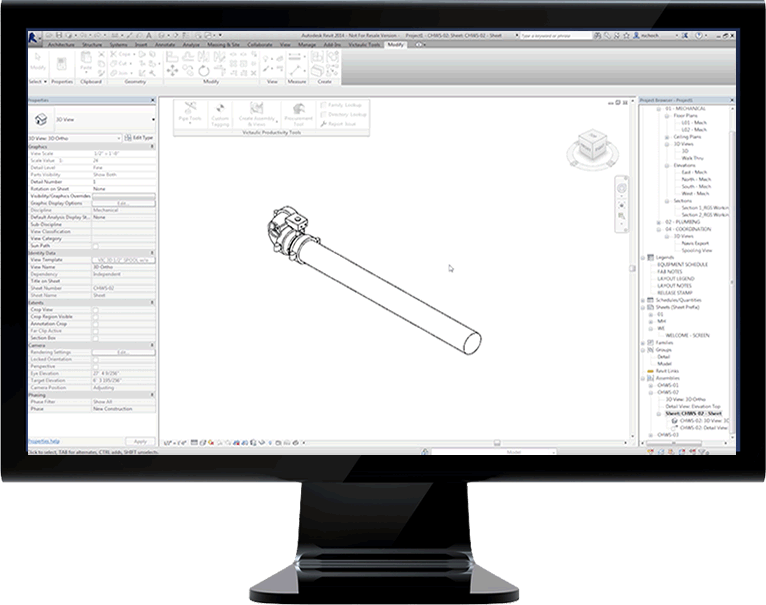

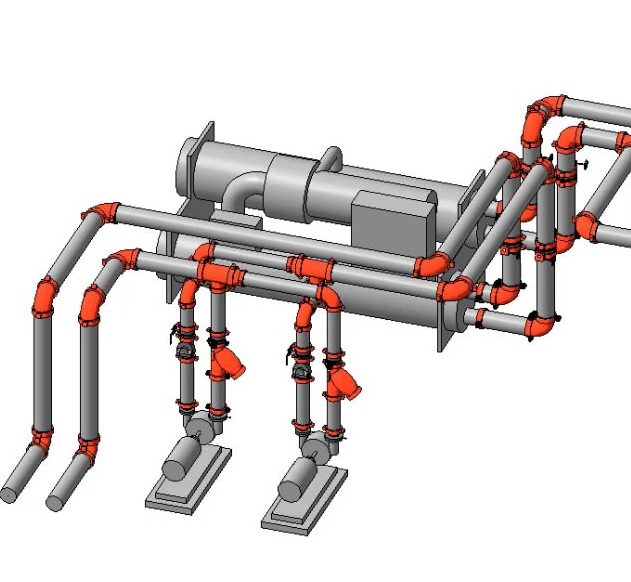

intro-image_2

“Victaulic Tools for Revit 2017 is yet another outstanding add in for Revit that leverages the Victaulic’s expertise in content development and pipe routing, and has a profound impact on workflow efficiency. We are excited to partner with Victaulic, who continue to extend and enhance Revit for MEP users”.

Steven Butler, Industry Strategy Manager, MEP Design & Fabrication, Autodesk

BENEFITS

Victaulic Tools for Revit®  is designed to improve the functionality of native Revit, through the use of enhanced routing tools and an innovative platform bringing Fabrication into Revit for the first time.

Efficiency Gains

With tools designed to allow users to route 2x faster, Victaulic Tools for Revit will enhance your BIM process and speed up the preconstruction timeline enabling improved communication between the design team and the field.

Fabrication in Revit®

The toolbar now allows you to create fabrication spools within Revit with a single click. Changes made to the model will automatically be updated on the fab spool, streamlining the fabrication process.

Improved LOD

Create detailed models faster than routing with generic content reducing project RFI’s and change orders.

TWICE THE PROJECTS, HALF THE TIME

Victaulic Tools for Revit® make pipe routing and editing fabrication a breeze
so you can work faster and smarter.

PIPE SPLITTING
PIPE SPLITTING
Cut lengths of pipe to your project specifications with a single click. Pipe lengths are then automatically imported onto your bills of material.
ASSEMBLY CREATION
ASSEMBLY CREATION
Create assemblies seamlessly, avoiding the delays associated with adding small or missing components. Victaulic Tools for Revit® accesses product features ten layers deep to ensure that no component is missed.
INSTANT RESIZING
INSTANT RESIZING
Increase or decrease the size of a full pipe section with the click of a button. All components, including valves, strainers, couplings and fittings will resize within your selection.
DELETE PIPE
DELETE PIPE
Delete pipe sections within your 3D view and in a single click. The pipe will then reattach fitting to fitting and with pre populated gap spaces built in.
ROTATE PIPE
ROTATE PIPE
Rotate pipe sections along a specified axis within your 3D view allowing you to see every angle of your pipe section.
SMART TAGGING
SMART TAGGING
Sequence your tags automatically for sections of pipe. Predefined tagging presets let you tag individual families and update those tags parametrically.

TUTORIALS

Getting started using Victaulic Tools for Revit®

EXPERTISE THROUGH REAL WORLD EXPERIENCE

bsw_6993_updated3

With the Victaulic Tools for Revit® , we’ve compressed 30 years of routing expertise and content development into a suite of Revit® tools to do one thing: increase your productivity.

With a team of 70 global piping coordinators testing our toolbar daily, we’re ready to provide the assurance and support you need.

FAQS

Our most often asked questions. If the question you’re looking for isn’t answered,
please call us or use the live chat. We’re here to help.

Are there any Victaulic Tools for Revit instructional videos available?

Yes. The Victaulic YouTube Channel has multiple videos explaining in detail how, when, and why to use each feature of Victaulic Tools for Revit.

Does Victaulic have Revit content families, and if so where can I find Victaulic’s families?

Upon installation of Victaulic Tools for Revit, the Component Ribbon will be available having Victaulic Families organized into product line and part type. Additional families can be found using the Content Center button with region and search features. The full Victaulic family library can be found for download at https://www.victaulic.com/resource-software/

Does Victaulic offer training for their Revit tools?

Customized training on Victaulic Tools for Revit is available upon request. Please visit www.victauliccps.com to learn more about the available training options provided by Victaulic.

Does Victaulic supply project templates as part of the Victaulic Tools for Revit download?

Victaulic Tools for Revit is supplied with both an imperial and metric template including Victaulic families, configured pipe types, defined services, and custom annotation families. The project templates are available for download alongside Victaulic Tools for Revit.

How do I purchase Victaulic Tools for Revit?

To purchase Victaulic’s Revit toolbar, click on “Buy” in the header of VictaulicSoftware.com. There you will find all pricing and purchasing information for Victaulic Tools for Revit.

How do I uninstall the Victaulic Tools for Revit software from my computer?

Select control panel – uninstall a program – and select Victaulic Tools for Revit
Your computer will prompt you with any additional uninstall steps.

What versions of Revit is the Victaulic Tools for Revit software compatible with?

Victaulic Tools for Revit follows the update cycle of Autodesk Revit. All versions currently supported by Autodesk are available for purchase on our store. Click here to purchase.

What versions of Windows is the Victaulic Tools for Revit software compatible with?

Victaulic Tools for Revit has been tested with Windows 7, Windows 8, Windows 8.1, and Windows 10.

Where can I find the Victaulic Tools for Revit User Manual?

The Victaulic Tools for Revit user manual is available here.  Additionally, the Victaulic YouTube Channel has multiple videos explaining in detail how, when, and why to use each feature of Victaulic Tools for Revit.

Who do I contact for Victaulic Tools for Revit software support?

On the Victaulic Tools for Revit toolbar, use the “Report Issue” button and an email will be created to our Victaulic Software email address and tell us your issue. You can also contact Victaulic at any time via phone or email. All contact information is available at victaulicsoftware.com

Will Victaulic’s Revit toolbar software work for projects featuring metric and imperial sizes?

Yes. Victaulic Tools for Revit supports projects with metric and imperial units.

Will Victaulic’s Revit toolbar work with anyone else’s content?

Yes. Victaulic Tools for Revit will work with any family or fabrication part used in pipe routing. The Victaulic toolbar comes equipped with over 100 Victaulic families, but other manufacturers are fully supported.

TRAINING

Attention Educators – Victaulic Tools for Revit is available for free for use within your classrooms, schools, colleges and universities. Contact Victaulic for more information.

Victaulic Tools for Revit Education License Request

DOWNLOAD VICTAULIC TOOLS FOR REVIT®

Please complete this form to access your Free 30-Day Trial. Once completed, you will receive an email with a link to download Victaulic Tools for Revit®

Receive over 100 Victaulic content families, along with continual product updates, for free when you download your 30 day trial.

To continue using the software after 30 days, you may purchase the software at any time before your trial period is over.
